Card Testing Equipment
Card testing is an important part of card manufacturing.  Quality, which has always been a concern for card suppliers and demands for governments, institutions and card issuers, is getting stronger and stronger.

BG INGENIERIE has developed a series of mechanical card testing devices to answer the increasing needs in quality: CQM, MasterCard® recommendations, ANSI 322, ISO7816, ISO10373, ISO24789, etc... specifications dedicated to card quality.  It is sometimes not easy to figure out which test has to be applied to each type of cards.

BG INGENIERIE already works with the largest players in the card industry and is here to fulfill customer demands and supply testing devices for these specifications, or for specific requirements.

Please scroll through the page and look at all the available products in the Card Testing Line

Model 055

Click on Image to Enlarge

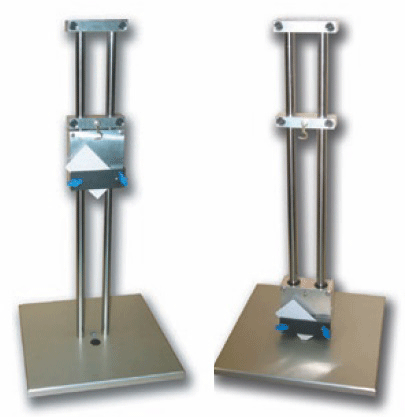

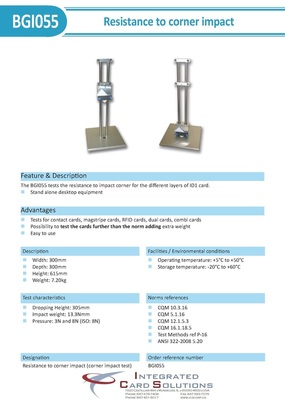

Impact Corner Testing Equipment

The BGI055 tests the corner impact resistance for the different layers of ID1 cards.

Brochure

Click on the brochure to Enlarge, Print, or Download

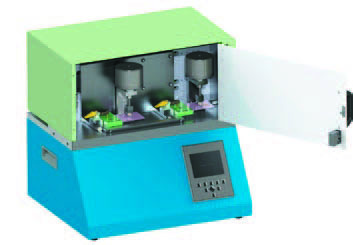

Model 058

Click on Image to Enlarge
3 Wheel 1 Axis ID1Testing Equipment x 1

The BGI058 3 wheels test is derived directly from MasterCard® recommendation.  The equipment tests the resistance of the contact chip of ID1 card bodies when crushed between 3 wheels. The BGI058 performs this test on «x» axis.

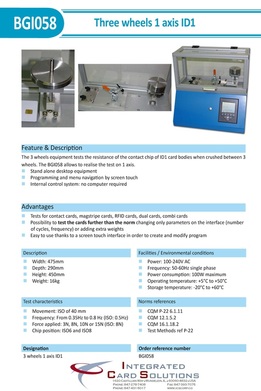

Brochure

Click on the image to Enlarge, Print, or Download

Model 071

Click on Image to Enlarge

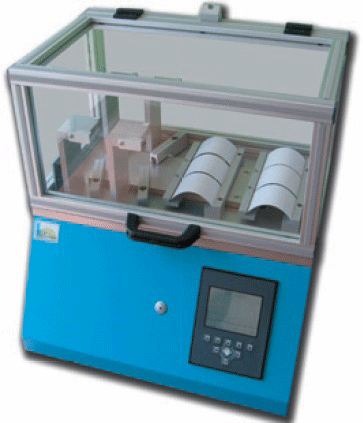

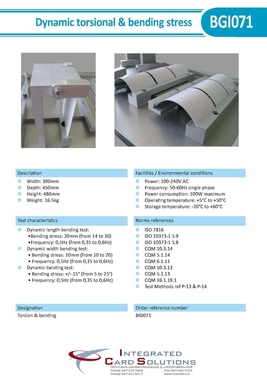

Torsion & Bending Testing Equipment

The BGI071 tests the resistance to torsion (twisting) and bending of ID1 card bodies.

Brochure

Click on the image to Enlarge, Print, or Download

Model 072

Click on Image to Enlarge

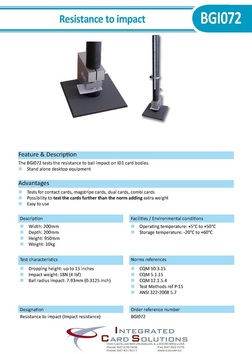

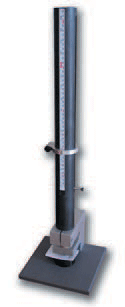

Ball Impact Resistance Testing Equipment

The BGI072 tests resistance to a ball impact on ID1 card bodies.

Brochure

Click on image to Enlarge, Print, or Download

Model 076

Click on Image to Enlarge

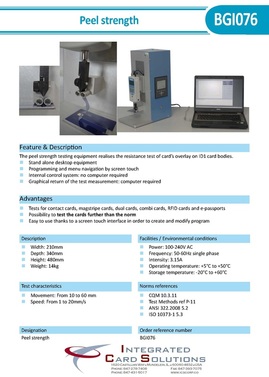

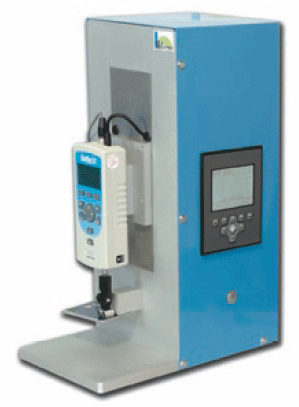

Peel Strength Testing Equipment

The BGI076 peel strength testing equipment realizes the resistance test of the card’s overlay on ID1 card bodies.

Brochure

Click on image to Enlarge, Print, or Download

Model 076A

Click on Image to Enlarge

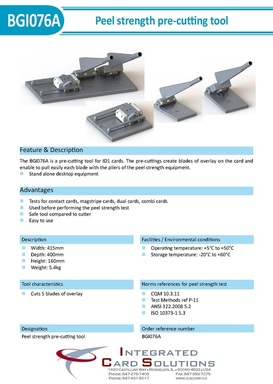

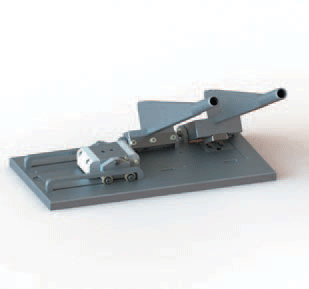

Peel Strength Pre-cutting Tool

The BGI076A is a pre-cutting tool for ID1 cards.  The pre-cuttings create blades of overlay on the card, which enables each blade to be easily pulled with the pliers of the BGI076 peel strength testing equipment.

Brochure

Click on image to Enlarge, Print, or Download

Models 077 and 077e

Model 077- Click on Image to Enlarge
Model 077e - Click on Image to Enlarge

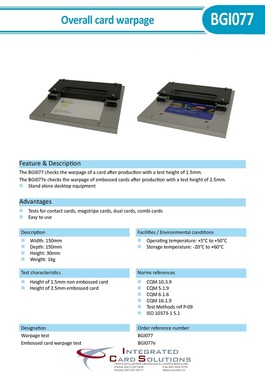

Warpage

The BGI077 checks the warpage of a card after production with a test height of 1.5mm (0.059”).

Embossed Card Warpage

The BGI077e checks the warpage of embossed cards after production with a test height of 2.5mm (0.098”).

Brochures

Click on image to Enlarge, Print, or Download

Model 078

Click on Image to Enalrge

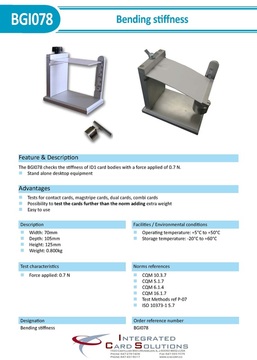

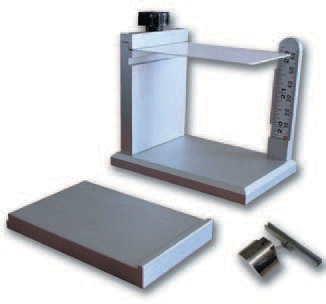

Bending Stiffness Testing Equipment

The BGI078 checks the stiffness of ID1 card bodies with a force applied of 0.7 N.

Brochure

Click on image to Enlarge, Print, or Download

Model 083

Click on Image to Enlarge

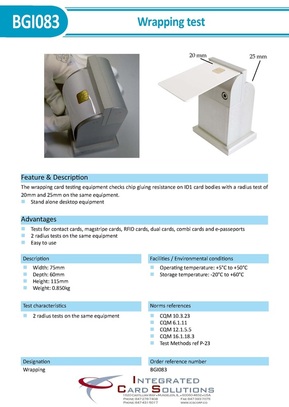

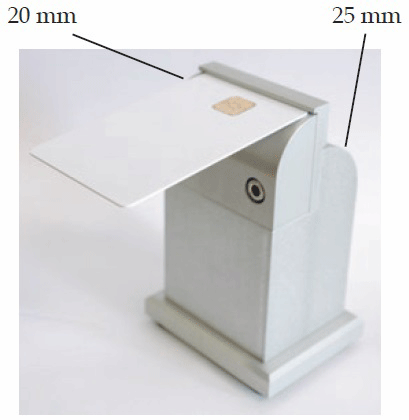

Wrapping Testing Equipment

The BGI 083 wrapping testing equipment checks chip gluing resistance on ID1 card bodies with a radius test of 20mm and 25mm on the same equipment.

Brochure

Click on image to Enlarge, Print, or Download

Model 103

Click on Image to Enlarge

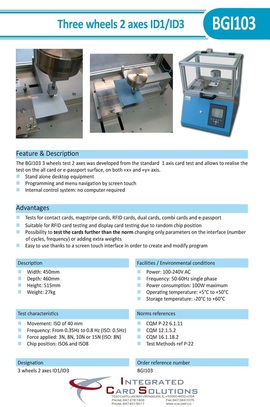

3 Wheel 2 Axis ID1/ID3 Testing Equipment x1

The BGI 103 3 wheels test was developed from the standard 1 axis test from MasterCard® recommendation.  The BGI103 performs the test on the entire card surface, on the «x» and «y» axis.

Brochure

Click on image to Enlarge, Print, or Download

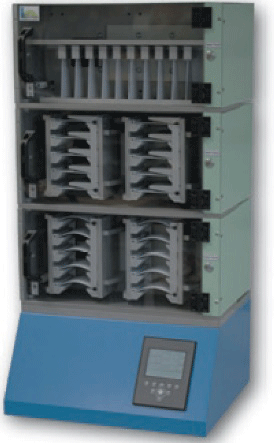

Model 110

Click on Image to Enlarge

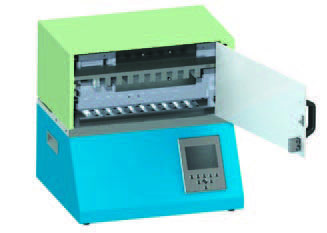

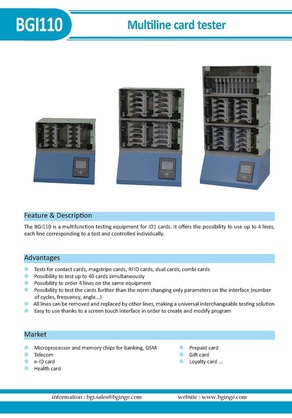

Multi Lines Testing Equipment
( See below for complete lines available)

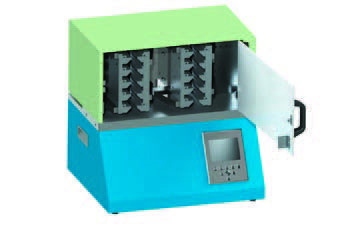

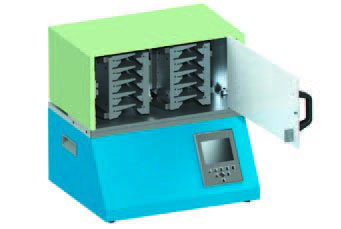

The BGI110 is a multifunction testing equipment for ID1 cards. It offers the possibility to use up to 4 lines, each line corresponding to a test.

Brochure

Click on image to Enlarge, Print, or Download

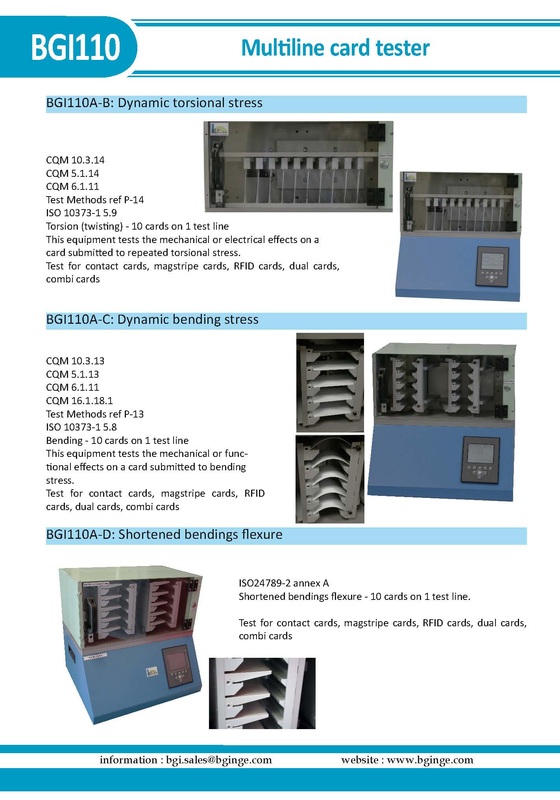

MODELS 110  LINES
A-B, A-C, A-D, A-E, A-F, A-G

Click on one of the Images above to Enlarge

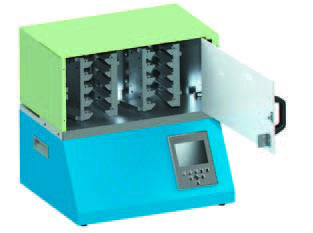

BGI110A-B Multi Lines Testing Equipment - Torsion

CQM P-14, ISO 10373-1 5.9 :
Torsion (twisting) - 10 cards on 1 test line. Test for contact cards, magstripe cards, dual cards, combi cards.

BGI110A-C Multi Lines Testing Equipment – Bending

CQM P-13, ISO 10373-1 5.8 :
Bending - 10 cards on 1 test line. Test for contact cards, magstripe
cards, dual cards, combi cards

BGI110A-D Multi Lines Testing Equipment – Shortened Bending Flexure

ISO24789-2 annex A :
Shortened bending flexure - 10 cards on 1 test line.  Test for contact cards, magstripe cards, dual cards, combi cards

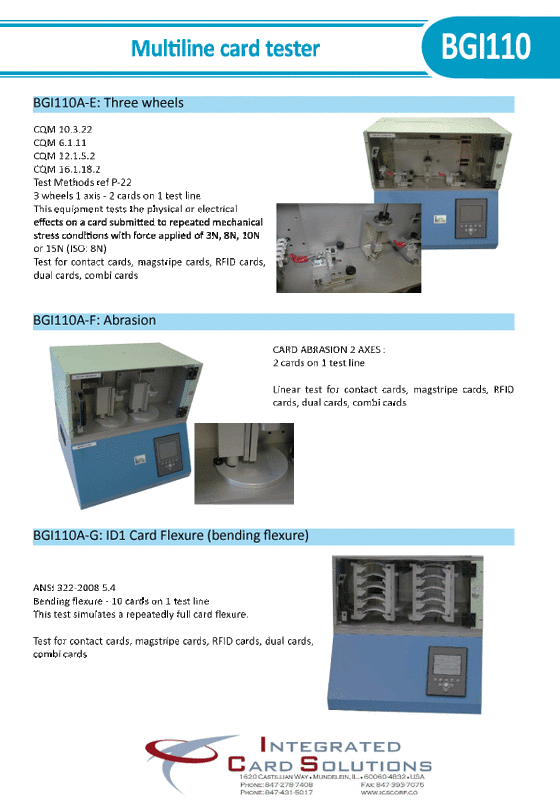

BGI110A-E Multi Lines Testing Equipment – 3 Wheels 1 Axis x 2

CQM P-22 :
3 wheels 1 axis - 2 cards on 1 test line. Test for contact cards, magstripe cards, dual cards, combi cards

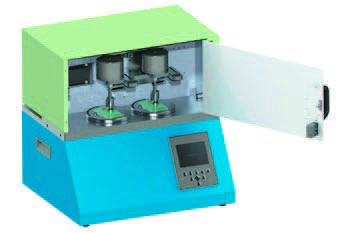

BGI110A-F Multi Lines Testing Equipment – Abrasion

CARD ABRASION 2 AXIS :
2 cards on 1 test line. Test for contact cards, magstripe cards, dual cards, combi cards

BGI110A-G Multi Lines Testing Equipment – Bending Flexure

ANSI 322-2008 5.4 :
Bending flexure - 10 cards on 1 test line. Test for contact cards, magstripe cards, dual cards, combi cards
